Inline Shower Filter-ISF002

Materials

Housing Body

• ABS (Acrylonitrile Butadiene Styrene): Lightweight, impact-resistant, and corrosion-proof

• Polished chrome electroplated exterior for a clean, premium finish compatible with any showerhead style

Filter Cartridge — 6-Stage Filtration Media

• KDF (Kinetic Degradation Fluxion): High-purity copper-zinc alloy that uses a redox (oxidation/reduction) process to remove chlorine, lead, copper, mercury, iron, aluminium, and hydrogen sulphide. Also inhibits microbial growth inside the filter.

• Activated Carbon: Adsorption-based filtration removes chlorine, volatile organic compounds (VOCs), pesticides, herbicides, mercury, lead, and asbestos.

• Anisotropic Magnet: Magnetic separator for ferrous sediment removal and heavy metal decontamination from the water flow.

• High-Flow Sediment Filter: Captures larger particulate sediment, preventing clogging of downstream showerheads, handshowers, and faucets.

• Calcium Sulphite: Provides high-capacity chlorine reduction with strong performance at elevated water temperatures.

• Activated Ceramic Balls: Made from natural stones and non-metallic inorganic materials processed at nanometre scale. Composed of selenium, zinc, nickel, cobalt, magnesium, and calcium — associated with benefits including improved water softness and mineral balance.

Connection Seals

• EPDM rubber washers for watertight, leak-free G1/2" connections at both inlet and outlet

Note: Filter media composition is fully customizable for OEM and private label orders.

Key Advantages

• 6-Stage Multi-Media Filtration — Combines KDF, activated carbon, magnetic, sediment, calcium sulphite, and ceramic ball filtration in a single compact inline unit for comprehensive water purification at the point of use.

• Chlorine & Heavy Metal Removal — Effectively reduces chlorine, lead, mercury, copper, iron, and aluminium — key contributors to dry skin, scalp irritation, hair colour fading, and long-term health concerns.

• Universal Inline Fit — Standard G1/2" male inlet and female outlet connect directly between any shower arm and showerhead without modification or adapters.

• Tool-Free Installation — Hand-tighten onto existing plumbing in under two minutes with no specialist knowledge required.

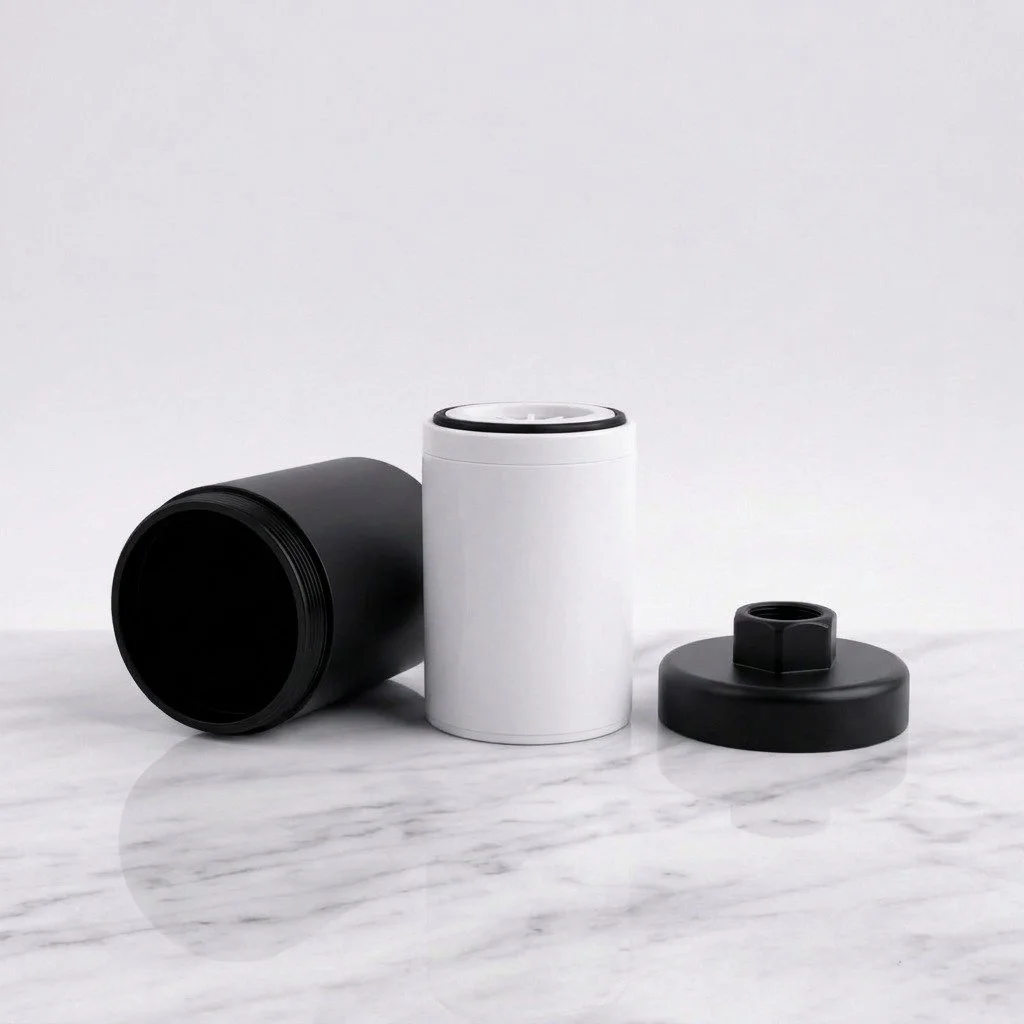

• Replaceable Filter Cartridge — Cartridge replacement every 3–6 months ensures consistently clean, filtered water without replacing the full housing unit.

• Customizable Filter Media — OEM buyers can specify filtration stages, media types, and cartridge lifespan to match target market requirements and health positioning.

Key Features

• 6-stage inline filtration: KDF + activated carbon + anisotropic magnet + sediment + calcium sulphite + ceramic balls

• Polished chrome ABS housing — lightweight, durable, and corrosion-resistant

• Standard G1/2" inlet and outlet — universal compatibility

• Max working temperature: 80°C / 120°F

• Filter cartridge lifespan: 3 – 6 months

• Tool-free hand-tighten installation

• Compatible with all fixed showerheads, handshowers, and faucets

• Replaceable cartridge design — housing reusable

• OEM / custom filter media available

Health Benefits

• Reduces chronic skin conditions and dermatitis triggered by chlorinated water

• Minimises scalp dryness and extends hair colour longevity

• Eliminates chlorine odour and unpleasant taste from shower water

• Removes bacteria and pathogenic agents from the water stream

• Reduces sediment and particulate matter that causes premature showerhead clogging

Manufacturing Process

• Injection Molding — Precision tooling produces a clean cylindrical housing with consistent wall thickness, smooth external surfaces, and tight thread tolerances at both inlet and outlet.

• Electroplating / Polished Chrome Finishing — Multi-layer chrome plating delivers a bright, mirror-like surface with strong adhesion and long-term corrosion resistance.

• Multi-Stage Filter Cartridge Assembly — Each filtration medium is layered and sealed within a standardized cartridge housing in controlled conditions, ensuring media separation and consistent flow-through performance.

• Leak & Pressure Testing — Every assembled unit is tested at rated working pressure to verify watertight seals at both connection points before shipment.

• Flexible Production Lines — Supports standard and custom configurations including filter media selection, housing colour, and private label packaging — from low-MOQ sampling through full mass production.
