Materials
Barrel Body
High-impact ABS engineering plastic — lightweight, heat-resistant, and dimensionally stable
Surface Finish
Professional multi-layer spray painting system:
Soft matte / satin finishes in blue, silver, beige, purple, and custom colors
Options: matte, soft-touch, satin, or low-gloss
Custom Pantone / sample matching available
Key Advantages
Uniform Multi-Color Spray Painting — Fully automated spray line produces consistent color coverage and smooth surface texture across complex curved surfaces, cradle, and ventilation details.
Durable Protective Coating — Multi-coat system improves scratch resistance, fingerprint resistance, and long-term color stability suitable for daily personal care use.
Clean Modern Aesthetic — Soft multi-color finishes create a refined, contemporary look ideal for hair dryers and beauty appliances.
Full OEM Customization — Color, gloss level, and surface texture can be fully tailored for brand differentiation.
Clean & Consistent Finish — Controlled clean-room spraying delivers defect-free surfaces free of orange peel, dust, or uneven coverage.
Key Features

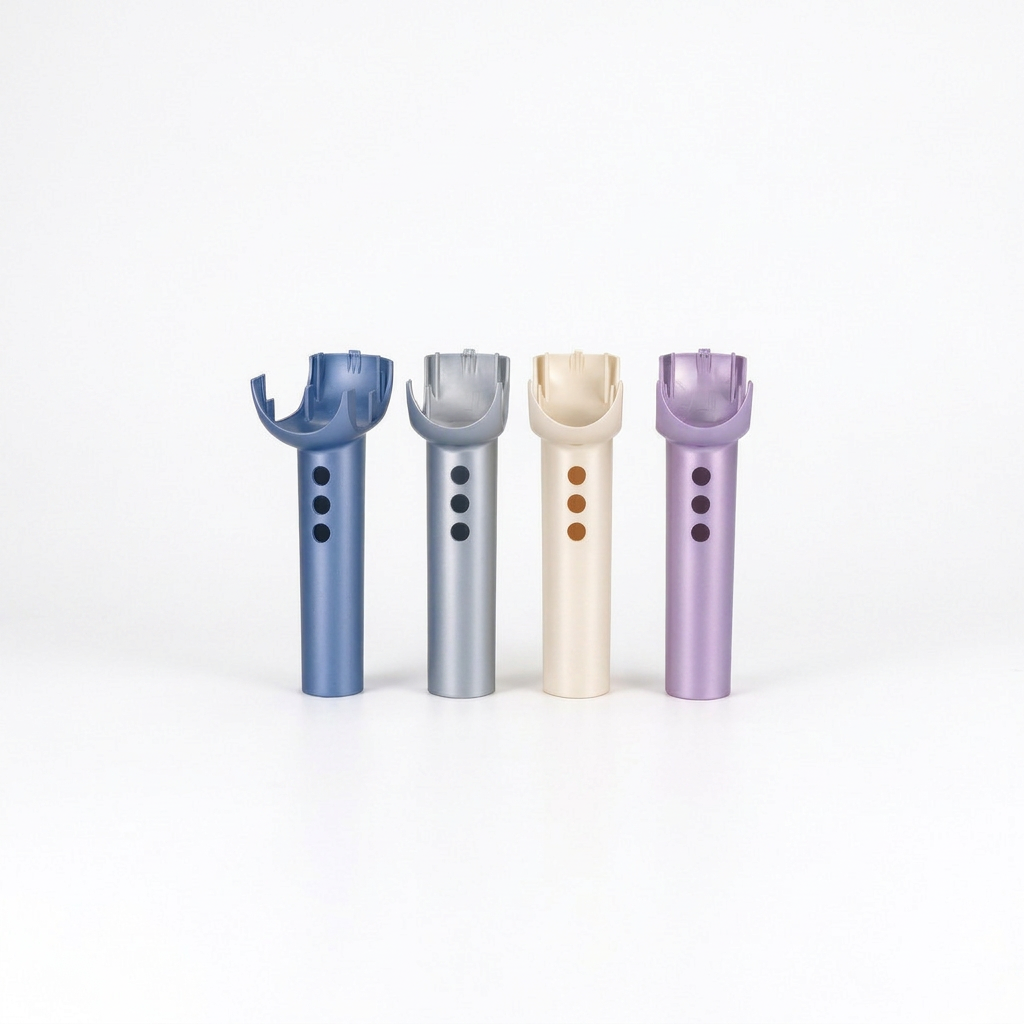

Soft spray-painted outer barrel in multiple colors (blue / silver / beige / purple)
Cylindrical body with upper cradle and side ventilation holes
Smooth, refined painted surface
Lightweight yet rigid ABS construction
Fully customizable spray paint system (matte / soft-touch / satin)
Suitable for hair dryer housings and personal care appliances
Low-MOQ sampling supported through flexible production lines
Manufacturing Process (Focus: Spray Painting)
Injection Molding — Precision tooling produces the outer barrel with consistent wall thickness, accurate cradle geometry, ventilation holes, and smooth surfaces ready for finishing.
Surface Preparation — Parts are thoroughly cleaned, deburred, and primed to ensure optimal paint adhesion on curved surfaces and detailed areas.
Spray Painting — Applied on a fully automated spray-coating line inside a controlled clean environment. Multi-stage process includes:
Primer application for adhesion and surface leveling
Color coat (custom soft blue / silver / beige / purple) applied with robotic spray guns for uniform coverage
Protective clear or soft-touch topcoat for durability, desired sheen, and fingerprint resistance
Controlled baking / curing cycle to achieve full hardness, adhesion, and long-term color stability
Quality Inspection — Visual and instrumental checks for color consistency, surface texture uniformity, surface defects, adhesion strength, and coating thickness across all color variants.
Final Assembly & Packaging — Barrels prepared for internal component assembly, final visual inspection performed, and parts packed according to customer specifications (bulk or private-label ready).
All spray paint systems, color formulations, and soft-touch options are available for OEM customization. Lead times and MOQs can be adjusted for sampling through mass production.
