Power Bank Housing — Rose Gold Spray-Painted Finish

HK$0.00

roduct Description

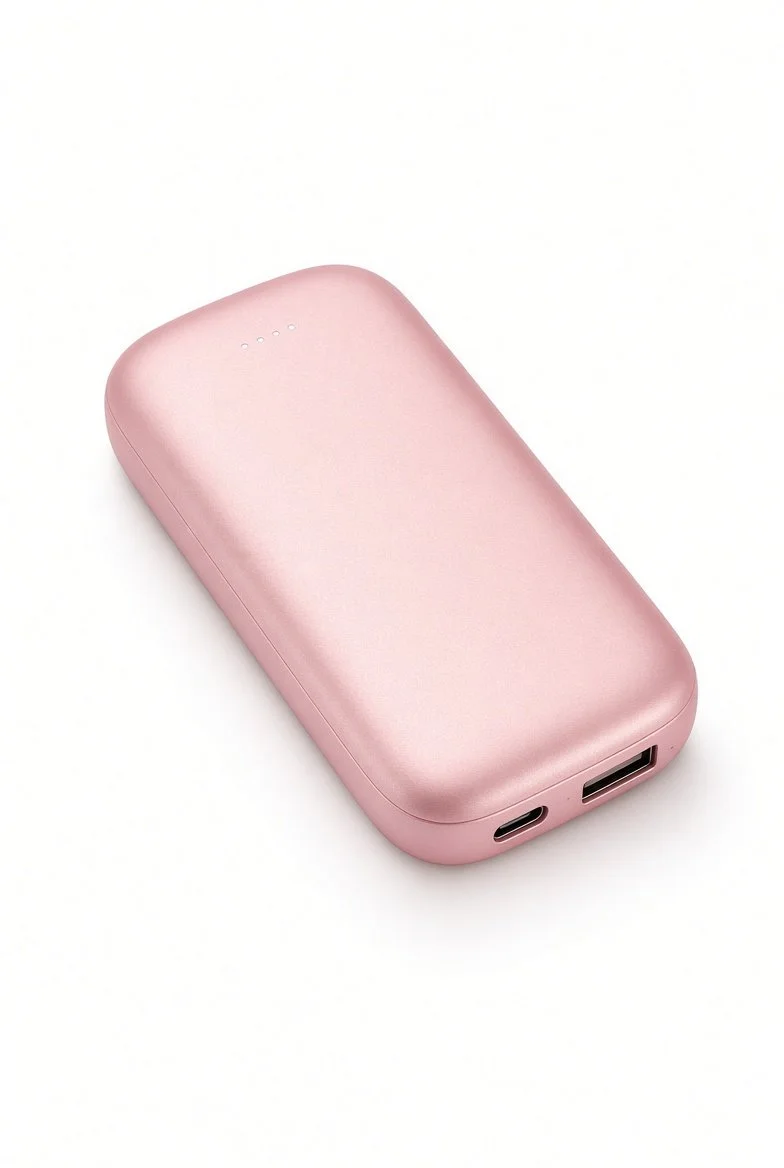

This power bank housing features a slim rectangular form with rounded edges and a rose gold finish. The refined surface is achieved through precision multi-layer spray painting on ABS, delivering a premium, modern appearance ideal for consumer electronics. Designed for OEM and private-label projects, the housing offers excellent durability, color consistency, and a clean aesthetic. Color and finish options are fully customizable.

Size

Approximate Dimensions: Length ≈ 140–150 mm | Width ≈ 65–75 mm | Thickness ≈ 15–20 mm
(Exact dimensions available for tooling confirmation)

roduct Description

This power bank housing features a slim rectangular form with rounded edges and a rose gold finish. The refined surface is achieved through precision multi-layer spray painting on ABS, delivering a premium, modern appearance ideal for consumer electronics. Designed for OEM and private-label projects, the housing offers excellent durability, color consistency, and a clean aesthetic. Color and finish options are fully customizable.

Size

Approximate Dimensions: Length ≈ 140–150 mm | Width ≈ 65–75 mm | Thickness ≈ 15–20 mm
(Exact dimensions available for tooling confirmation)

Materials

Main Housing
High-impact ABS engineering plastic — lightweight, durable, and dimensionally stable

Surface Finish
Professional multi-layer spray painting system:

  • Rose gold finish
    Options: matte, soft-touch, satin, or high-gloss
    Custom Pantone / sample matching available

Key Advantages

  • Uniform Rose Gold Spray Painting — Fully automated spray line produces consistent color coverage and smooth surface texture across the rectangular body and rounded edges.

  • Durable Protective Coating — Multi-coat system improves scratch resistance, fingerprint resistance, and long-term color stability suitable for daily portable use.

  • Clean Modern Aesthetic — Rose gold finish creates a refined, premium look ideal for power banks and consumer electronics.

  • Full OEM Customization — Color, gloss level, and surface texture can be fully tailored for brand differentiation.

  • Clean & Consistent Finish — Controlled clean-room spraying delivers defect-free surfaces free of orange peel, dust, or uneven coverage.

Key Features

  • Rose gold spray-painted housing

  • Slim rectangular form with rounded edges

  • LED indicator and port openings

  • Smooth, refined painted surface

  • Lightweight yet rigid ABS construction

  • Fully customizable spray paint system (matte / soft-touch / satin / high-gloss)

  • Suitable for power bank housings and portable electronics

  • Low-MOQ sampling supported through flexible production lines

Manufacturing Process (Focus: Spray Painting)

Injection Molding — Precision tooling produces the main housing with consistent wall thickness, accurate contours, and smooth surfaces ready for finishing.

Surface Preparation — Parts are thoroughly cleaned, deburred, and primed to ensure optimal paint adhesion on all surfaces and edges.

Spray Painting — Applied on a fully automated spray-coating line inside a controlled clean environment. Multi-stage process includes:

  • Primer application for adhesion and surface leveling

  • Rose gold color coat applied with robotic spray guns for uniform coverage

  • Protective clear or soft-touch topcoat for durability, desired sheen, and fingerprint resistance

  • Controlled baking / curing cycle to achieve full hardness, adhesion, and long-term color stability

Quality Inspection — Visual and instrumental checks for color consistency, surface texture uniformity, surface defects, adhesion strength, and coating thickness.

Final Assembly & Packaging — Housing prepared for internal assembly, final visual inspection performed, and parts packed according to customer specifications (bulk or private-label ready).

All spray paint systems, color formulations, and finish options are available for OEM customization. Lead times and MOQs can be adjusted for sampling through mass production.
