Materials
Main Housing
High-impact ABS or PC/ABS engineering plastic — lightweight, durable, and dimensionally stable
Buttons & Scroll Wheel
ABS with matching high-gloss black finish
Surface Finish
Professional multi-layer spray painting system:
High-gloss piano black base coat + clear protective topcoat
Options: high-gloss, satin, soft-touch, or custom electronics colors
Custom Pantone / sample matching available
Key Advantages
Premium High-Gloss Spray Painting — Fully automated spray line produces a deep, mirror-like piano black finish with excellent depth, clarity, and uniformity across contoured surfaces and button areas.
Durable Protective Coating — Multi-coat system with scratch-resistant and fingerprint-resistant clear topcoat ensures long-term gloss retention under daily hand contact.
Clean Modern Aesthetic — High-gloss black body creates a refined, professional look ideal for consumer electronics and office products.
OEM Electronics Ready — Color, gloss level, and surface texture can be fully matched to brand design specifications.
Clean & Consistent Finish — Controlled clean-room spraying delivers defect-free surfaces free of orange peel, dust, or uneven gloss.
Key Features

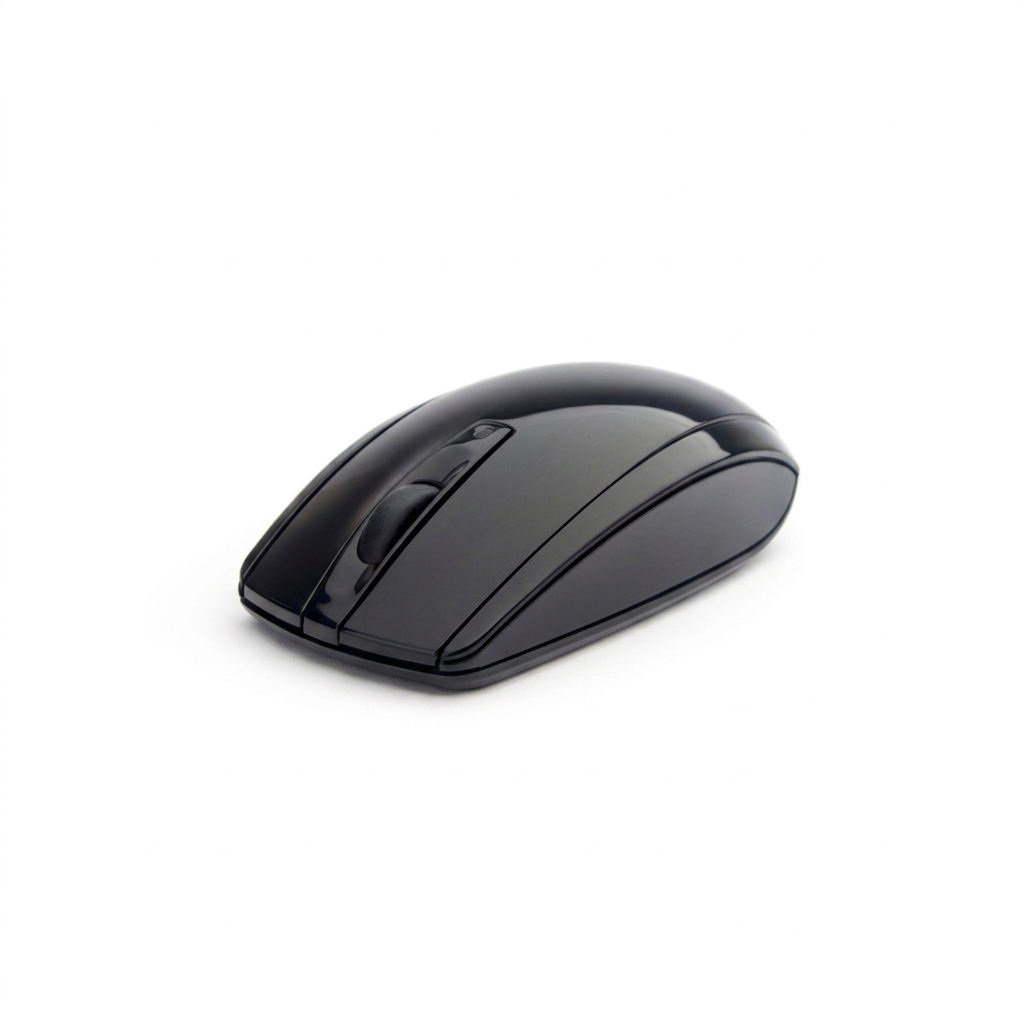

High-gloss piano black spray-painted main body
Matching high-gloss black buttons and scroll wheel
Ergonomic contoured shape for comfortable grip
Smooth, mirror-like painted surface
Lightweight yet rigid ABS construction
Fully customizable paint system (high-gloss / satin / soft-touch)
Suitable for wireless mouse, office, and consumer electronics product lines
Low-MOQ sampling supported through flexible production lines
Manufacturing Process (Focus: Spray Painting)
Injection Molding — Precision tooling produces the main housing, buttons, and scroll wheel with consistent wall thickness, accurate contours, and smooth surfaces ready for finishing.
Surface Preparation — Parts are thoroughly cleaned, deburred, and primed to ensure optimal paint adhesion, especially on curved surfaces and button recesses.
Spray Painting — Applied on a fully automated spray-coating line inside a controlled clean environment. Multi-stage process includes:
Primer application for adhesion and surface leveling
High-gloss black base color coat applied with robotic spray guns for uniform coverage across the body, buttons, and contours
Multiple layers of clear protective topcoat to achieve mirror-like depth, scratch resistance, and fingerprint resistance
Controlled baking / curing cycle to achieve full hardness, adhesion, and long-term gloss stability
Quality Inspection — Visual and instrumental checks for gloss level, color consistency, surface defects, adhesion strength, and coating thickness. Functional testing of buttons and scroll wheel after finishing.
Final Assembly & Packaging — Internal electronics and optical sensor assembled, final visual inspection performed, and products packed according to customer specifications (bulk, retail, or private-label ready).
All paint systems, high-gloss formulations, and custom color options are available for OEM customization. Lead times and MOQs can be adjusted for sampling through mass production.
