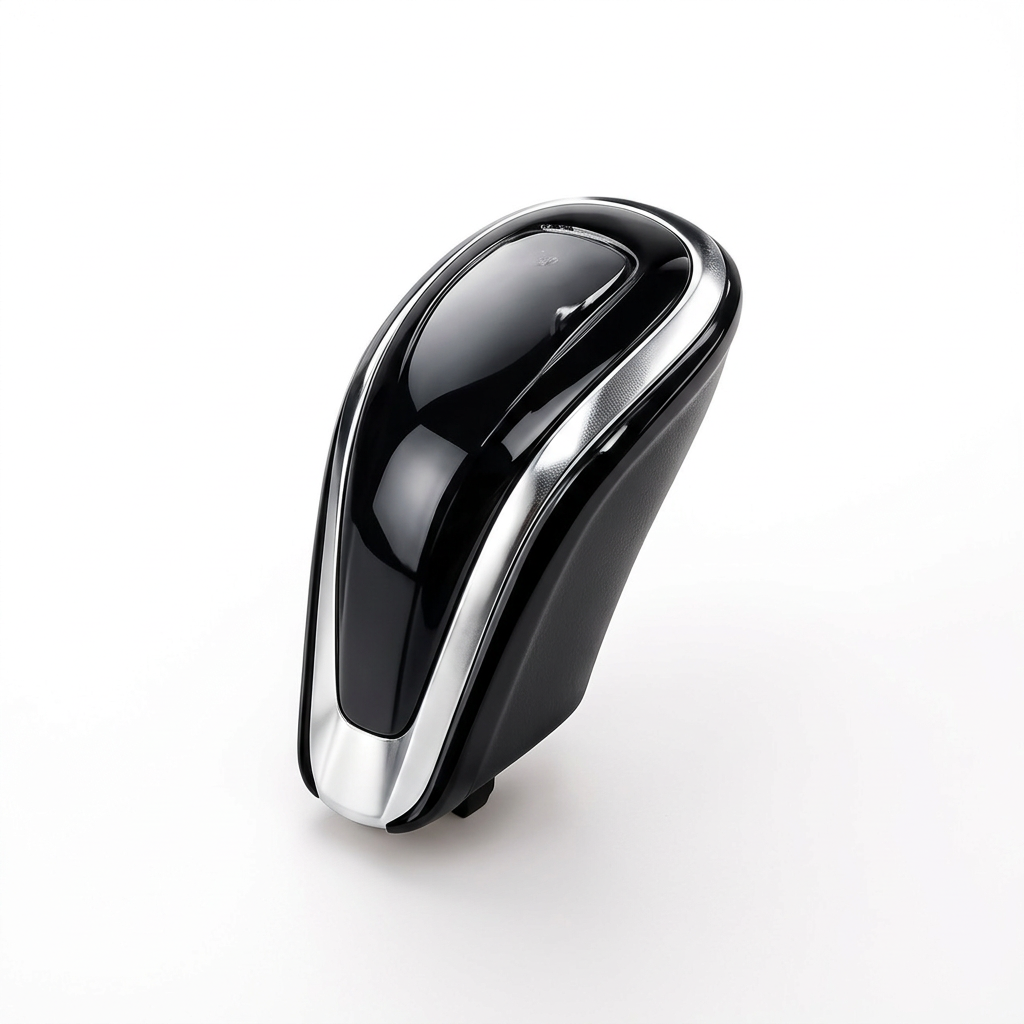

Materials
Main Body
High-impact ABS or PC/ABS engineering plastic — durable, heat-resistant, and dimensionally stable
Accent Trim
ABS with electroplated chrome finish (or optional spray-painted metallic alternatives)
Surface Finish
Professional multi-layer spray painting system:
High-gloss piano black base coat + clear protective topcoat
Options: high-gloss, satin, soft-touch, or custom automotive colors
Custom Pantone / OEM color matching available
Key Advantages
Premium High-Gloss Spray Painting — Fully automated spray line produces a deep, mirror-like piano black finish with excellent depth, clarity, and uniformity across complex curved and contoured surfaces.
Durable Protective Coating — Multi-coat system with UV-resistant and scratch-resistant clear topcoat ensures long-term gloss retention and resistance to hand oils, cleaning agents, and daily use.
Sharp Visual Contrast — High-gloss black body paired with bright chrome accent trim creates a refined, modern automotive interior aesthetic.
OEM Automotive Ready — Color, gloss level, chrome accents, and surface texture can be fully matched to vehicle brand design specifications.
Clean & Consistent Finish — Controlled clean-room spraying delivers defect-free surfaces free of orange peel, dust, or uneven gloss.
Key Features
High-gloss piano black spray-painted main body
Bright chrome-plated decorative accent trim
Ergonomic contoured grip form
Integrated top button recess
Smooth, mirror-like painted surface
Heat-resistant ABS construction suitable for vehicle interiors
Fully customizable paint system (high-gloss / satin / soft-touch)
Precise fitment for gear shift applications
Low-MOQ sampling supported through flexible production lines
Manufacturing Process (Focus: Spray Painting)
Injection Molding — Precision tooling produces the main body, accent trim, and button recess with consistent wall thickness, sharp edges, and smooth surfaces ready for finishing.
Surface Preparation — Parts are thoroughly cleaned, deburred, and primed to ensure optimal paint adhesion, especially on complex curved and contoured surfaces.
Spray Painting — Applied on a fully automated spray-coating line inside a controlled clean environment. Multi-stage process includes:
Primer application for adhesion and surface leveling
High-gloss black base color coat applied with robotic spray guns for uniform coverage and deep color saturation
Multiple layers of clear protective topcoat to achieve mirror-like depth, UV resistance, and scratch protection
Controlled baking / curing cycle to achieve full hardness, adhesion, and long-term gloss stability
Chrome Trim Finishing — Decorative accent trim is electroplated (or optionally spray-painted metallic) for bright, durable chrome appearance.
Quality Inspection — Visual and instrumental checks for gloss level, color consistency, surface defects, adhesion strength, and coating thickness. Fitment and functional testing after finishing.
Final Assembly & Packaging — Trim and any internal components assembled, final visual inspection performed, and parts packed according to customer specifications (bulk, sequential, or private-label ready).
All paint systems, high-gloss formulations, and dual-tone combinations are available for OEM customization. Lead times and MOQs can be adjusted for sampling through mass production.
